Coordinating Cleanroom Ceiling Panels with FFU Grids, Sprinklers, Lighting and Access Hatches in Semiconductor Fabs

Ceiling Grid Logic

Start with Airflow, Then Lock the Grid

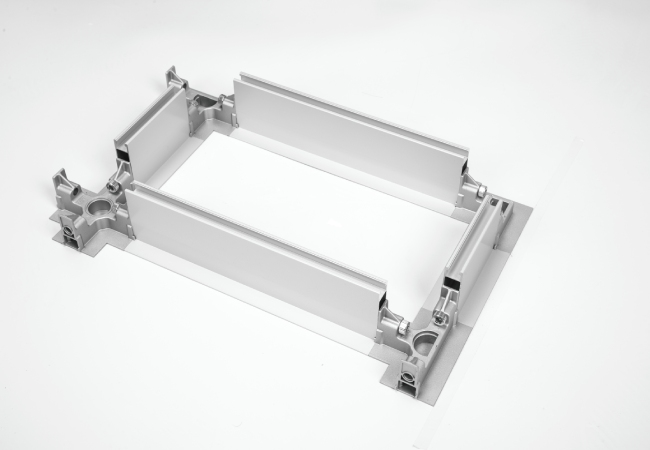

The FFU ceiling grid system should be developed from room classification targets, heat load, tool exhaust, return air paths and future service access. For high-density semiconductor areas, the grid is not only a support frame. It becomes the reference for FFUs, blank panels, filter replacement routes, lighting positions and structural hangers.

A practical coordination step is to freeze the ceiling module only after the process bay map, equipment height, maintenance clearances and airflow concept are reviewed together. Wonclean ceiling systems can be adapted for modular layouts, but the benefit is strongest when service conflicts are removed in the design stage.

ISO 14644-4 gives guidance for cleanroom design, construction and start-up, including new, modified and refurbished cleanroom installations. For a ceiling package, that means requirements should be translated into measurable coordination documents, not only layout drawings.

Trade Coordination

Sprinklers, Lights and FFUs Need a Shared Ceiling Map

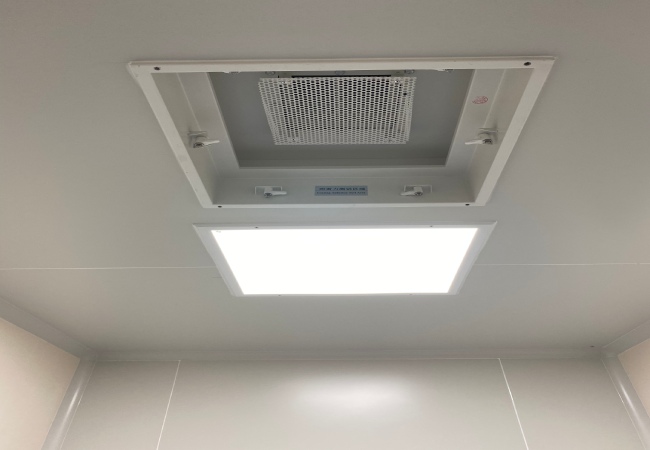

Sprinkler heads, LED lights and FFU modules often appear simple when viewed separately. The conflict appears when the final ceiling plane must preserve air distribution, fire coverage, visual comfort and serviceability at the same time. A sprinkler too close to an FFU face can interfere with maintenance. A light row placed without filter access planning can force awkward service work. An access hatch without clearance above it becomes decorative rather than useful.

Panels and Hatches

Cleanroom False Ceiling Panels Should Not Become Guesswork

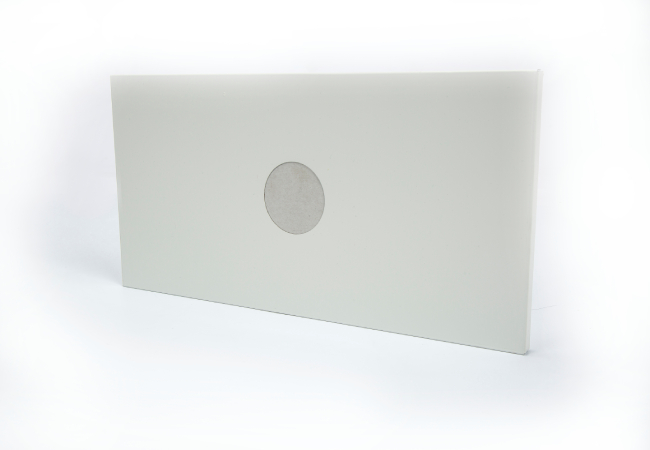

Cleanroom false ceiling panels may look interchangeable, but each panel position can carry a different function: blank closure, filter support, light integration, access hatch, sensor opening or service penetration. If the ceiling schedule does not identify these functions, installers may make field decisions that weaken cleanability or delay qualification.

For semiconductor fabs, the panel schedule should include panel type, grid size, load assumption, gasket or seal approach, adjacent services and inspection points. A factory-prepared access panel is easier to document than a later field opening, especially when it sits above a tool bay that will be difficult to enter after equipment installation.

NFPA 13 is commonly referenced for automatic sprinkler system design and installation. Cleanroom ceiling coordination should always be reviewed with the local authority, fire protection engineer and project code basis because sprinkler requirements cannot be solved by cleanroom suppliers alone.

Qualification View

The Ceiling Layout Must Be Testable After Installation

ISO 14644-3 covers cleanroom performance test methods such as airflow, pressure difference, recovery and filter-related testing. A ceiling layout that is hard to access is also hard to test, troubleshoot and maintain.

Before releasing the ceiling package, check whether test locations, filter leakage access, balancing devices, pressure sensors and room recovery expectations are compatible with the actual ceiling arrangement. The goal is not to add complexity; it is to make the installed ceiling understandable to the team that has to qualify it.

Technical Fact Check

What This Article Does and Does Not Claim

• The article does not claim that ceiling panels alone determine ISO class; airborne particle classification is verified by particle concentration testing under ISO 14644-1.
• Sprinkler spacing and design must be confirmed by the fire protection engineer and authority having jurisdiction; cleanroom layout should not override life safety requirements.
• FFU grid coordination should include maintenance clearance, electrical access and replacement routes, not only initial airflow distribution.
• Factory-prepared panels and documented penetrations reduce uncontrolled field cutting, but site verification is still required before qualification.

Referenced Technical Standards

Sources to Review During Engineering

• ISO 14644-4: used in this article where design, construction and start-up planning are discussed.
• ISO 14644-3: used where airflow, pressure, recovery and cleanroom testability are discussed.
• ISO 14644-1: referenced for airborne particle cleanliness classification.
• NFPA 13: referenced where sprinkler layout coordination is discussed.

FAQ

Common Questions

What is an FFU ceiling grid system?

It is a ceiling support and coordination system for fan filter units, panels and service elements. In semiconductor projects it also helps organize maintenance access, lighting and service routing.

Can clean room ceiling panels be changed after installation?

Some panels can be changed, but late changes can affect seals, airflow, sprinkler layout and commissioning records. Critical openings should be planned before fabrication.

Do sprinklers reduce cleanroom performance?

Sprinklers are required by the applicable fire code basis. The engineering task is to coordinate their location with the cleanroom ceiling grid and avoid unnecessary field conflicts.

Why are access hatches important?

Access hatches let technicians inspect and service valves, dampers, wiring and sensors without uncontrolled ceiling damage. They should be linked to specific service points.
