Russia FAB 300 Semiconductor Cleanroom Project Case Study: Ceiling Grid, Wall Panels, Raised Floor and HVAC Coordination

Project Snapshot

Confirmed Scope from the Project Update and Site Photos

This case study uses the LinkedIn project update and the provided project photos as source material. It does not claim confidential customer data, final cleanroom classification, room area or acceptance-test results. The visible and stated scope is enough to explain the engineering logic behind a semiconductor FAB 300 cleanroom envelope.

Ceiling Coordination

The Ceiling Grid Is a Coordination Platform, Not a Finish Layer

In semiconductor cleanroom construction, the ceiling grid carries more coordination pressure than a normal architectural ceiling. It must reserve positions for clean air delivery, lighting, access points, fire services, cable routing, suspension rods and duct routes. If the grid is not coordinated early, later field changes can affect airflow uniformity, access safety and installation sequence.

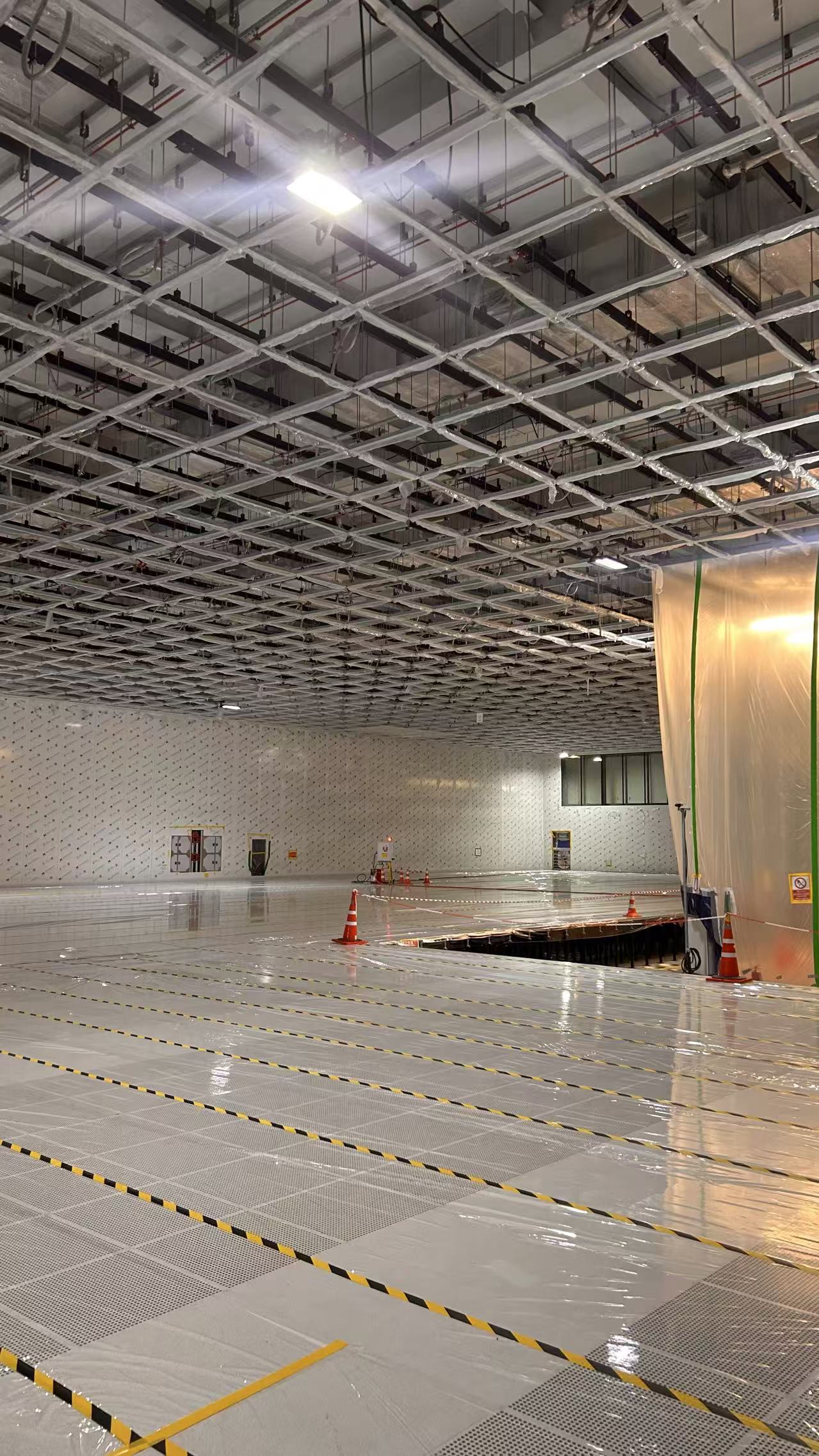

The Russia FAB 300 photos show a large overhead grid with protected members, dense suspension points and multiple service routes. This is a typical moment when the project team must keep drawings, installation progress and site protection aligned. The cleanroom ceiling system is still under construction, but the decisions made at this stage shape how the room can be balanced, inspected and maintained later.

For Wonclean, ceiling coordination means checking product dimensions, module grid rhythm, wall-to-ceiling junctions and HVAC interfaces together. The technical goal is simple: when panels, filters, ducts and lighting are installed, every item should have a planned position instead of becoming a site conflict.

Wall Panels

Wall Panel Installation Creates the Cleanroom Boundary

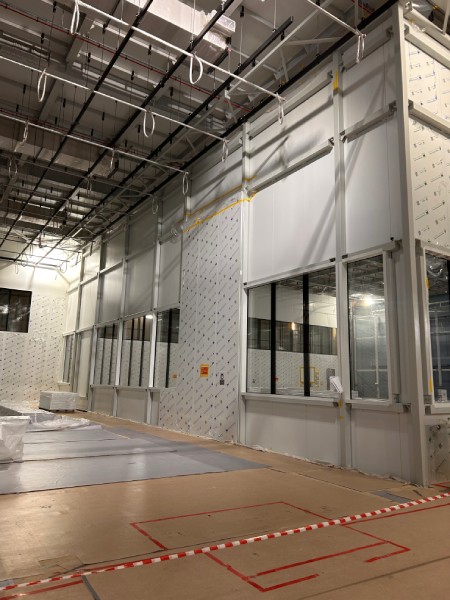

The wall panels in this FAB 300 project are more than large cladding surfaces. They define the cleanroom boundary, protect the work area from uncontrolled particles and provide a cleanable surface for the future operating environment. The photos show panel protection film still in place, which is important during an active construction stage because nearby floor, ceiling and service work can easily scratch finished surfaces.

Observation windows and service openings require special attention. The wall panel layout must hold alignment over long runs, while window frames must remain flush enough to avoid ledges and cleaning difficulty. Around openings, panel cutting, reinforcement, sealant and frame installation need to be planned as one detail.

A semiconductor cleanroom is usually judged by performance after testing, but many performance risks are created earlier. Poor wall joints, open gaps, weak protection and unplanned penetrations can turn into leakage, cleaning difficulty or rework. That is why Wonclean treats cleanroom wall panels as part of the whole envelope system.

Raised Floor Planning

Raised Floors Need Load, Airflow and Service Logic at the Same Time

The raised floor field in the project photos is one of the clearest technical signals of a semiconductor environment. A raised floor is not selected only for appearance. It must support equipment loads, allow service access, match airflow planning and maintain stable elevation across a large area.

Pedestal layout, panel seating and local leveling matter because a small repeated error can become a large alignment problem across a FAB bay. Protective film and temporary access routes also matter. While construction is active, panels must be protected from surface damage, contamination and unnecessary movement.

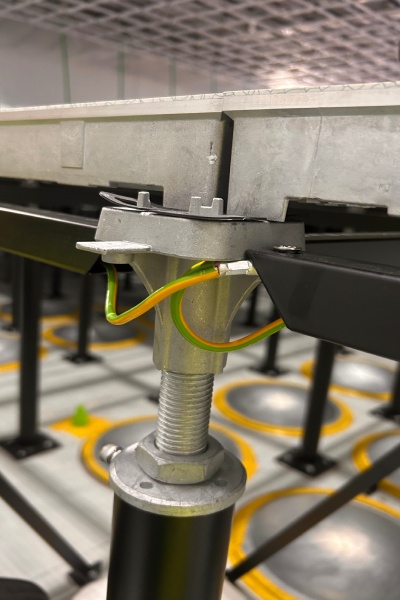

The close-up project photo also shows conductive bonding at the pedestal area. That detail is important in high-tech manufacturing spaces where electrostatic control and equipment grounding need to be considered together with mechanical installation. The article does not certify the final electrostatic performance; it highlights the visible construction detail that should later be verified through project-specific testing.

HVAC Integration

HVAC Interfaces Must Be Protected During Construction

The LinkedIn project update specifically mentions HVAC integration. In the photos, overhead ducts and service routes are present while the cleanroom envelope and raised floor are still being assembled. This sequence is common in large cleanroom projects, but it creates a coordination challenge: the room must remain buildable while many trades work in the same space.

HVAC coordination affects ceiling panel openings, duct connection positions, maintenance access and later air balancing. If an opening is shifted or a duct route blocks access, the issue may not be obvious until commissioning. That is why ceiling grid, wall height, service zones and floor routes should be reviewed together before final closure.

Wonclean's role in a project like this is to support the cleanroom envelope and related product delivery so site installation has fewer unknowns. The light marketing point is also the practical point: reliable products matter, but reliable coordination is what lets those products work as a system.

Construction Controls

What the Site Photos Reveal About Risk Control

The Russia FAB 300 project photos show several good construction-control signals: protection film on floors and wall panels, temporary safety routes, stacked panel materials, active ceiling coordination and visible separation of work areas. These details are not decorative. They protect cleanroom components before the final cleaning and commissioning stage.

• Protect finished cleanroom wall panels from scratches while ceiling and floor work continue.
• Maintain temporary access paths so installers do not randomly cross completed floor zones.
• Keep ceiling modules and service openings aligned with the final HVAC and lighting plan.
• Check raised floor pedestal leveling before large equipment or repeated traffic loads arrive.
• Record visible installation details before hidden areas are closed by panels or floor tiles.

For a high-tech manufacturing cleanroom, these site controls reduce rework and preserve the quality of the cleanroom envelope during the most vulnerable stage of installation.

Technical Fact Check

What This Case Study Does and Does Not Claim

• The project is described as a Semiconductor FAB 300 cleanroom project based on the supplied project image folder and LinkedIn project update.
• The article discusses visible ceiling grid coordination, wall panel installation, raised floor planning and HVAC integration shown or stated in the project materials.
• The article does not claim a final ISO class, particle-count result, room area, customer name, city or acceptance status because those data were not provided.
• Photos show on-site progress, not final qualification. Final performance should be confirmed through project commissioning and applicable cleanroom test records.
• The case study is written for Wonclean's English website as a technical project article with light product positioning.

Referenced Technical Standards

Useful References for Cleanroom Project Review

• ISO 14644-4: useful for cleanroom design, construction and start-up coordination thinking.
• ISO 14644-3: useful for cleanroom test methods and commissioning discussions.
• ISO 14644-1: useful as a reference for airborne particle cleanliness classification, if the project team later publishes verified classification results.

FAQ

Russia FAB 300 Cleanroom Project FAQ

Wonclean Project Support

Cleanroom Envelope Support for Semiconductor Projects

Wonclean supports semiconductor, electronics, pharmaceutical and laboratory cleanroom projects with wall systems, ceiling systems, modular cleanroom components, doors, windows, air showers, pass boxes and project-level drawing coordination.

For a semiconductor cleanroom or FAB support space, share the layout, ceiling height, process routes, cleanliness target, pressure concept, HVAC basis and equipment access needs so the cleanroom envelope can be engineered before production and installation.
